Hydraulic bending machine,Provide quotations for various iron art gates and offer professional services to enterprises related to iron art.

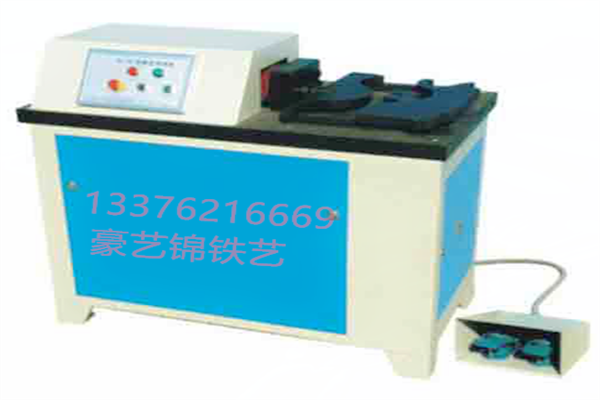

TYZ-16 Hydraulic Bending Machine
TYZ-20 Hydraulic Bending Machine
TYZ-16 and TYZ-20 is the Semi-automatically Electric Hydraulic Bending Equipment with inching and automatic ，two operation modes ,which can extrude round steel, square steel, flat steel and major-arc square tube of different specifications into different shapes of arc, angle and special metal decorative parts by different molds. They can reach batch ,fast, standard and highly efficient production mode as the ideal equipment for wrought iron architectural decoration ,metallic structure and furniture industry, TYZ-20 is new oversize equipment with higher processing capacity than TYZ-16 and more suitable for oversize wrought iron processing, architecture and exterior decoration.
Item | TYZ-16 Capacities | TYZ-20 Capacities | |
Max Working Pressure (Ton) | ≤20 Ton | ≤30 Ton | |
Max Working Travel Range (mm) | ≤300mm | ≤300mm | |
Max Sizes of the Stocks to be processed | flat steel | ≤50×10mm | ≤60×10mm |
Square Steel | ≤16×16mm | ≤20×20mm | |
Round Steel | ≤Ф16mm | ≤Ф20mm | |
Motor | Power | 2.2KW | 2.2KW |
Rotating Speed | 1400(r/min) | 1400(r/min) | |
電壓Voltage | 380V 50HZ | 380V 50HZ | |
External Size (L×W×H)(mm) | 1200×640×1060mm | 1400×640×1100mm | |
Packing Size (L×W×H)(mm) | 1320×730×1260mm | 1520×760×1310mm | |
Net/Gross Weight(kg) | 765/1034kg | 1120/1380kg | |
