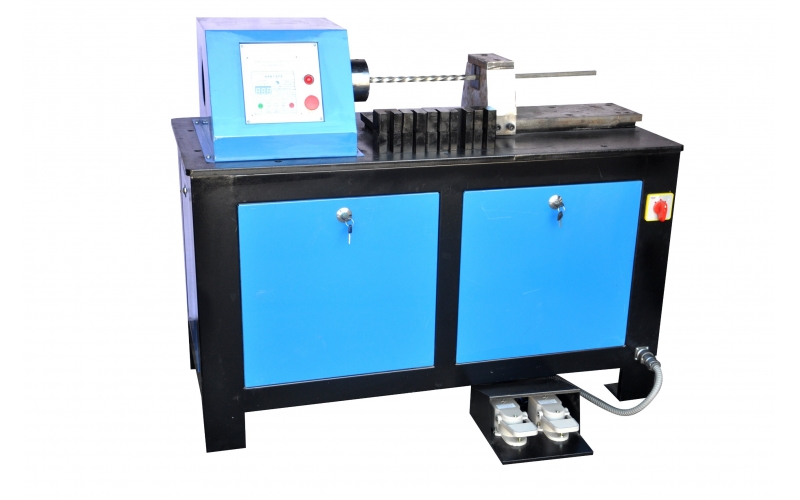

TNQ-20 Twisting & Basket Shaping Machine

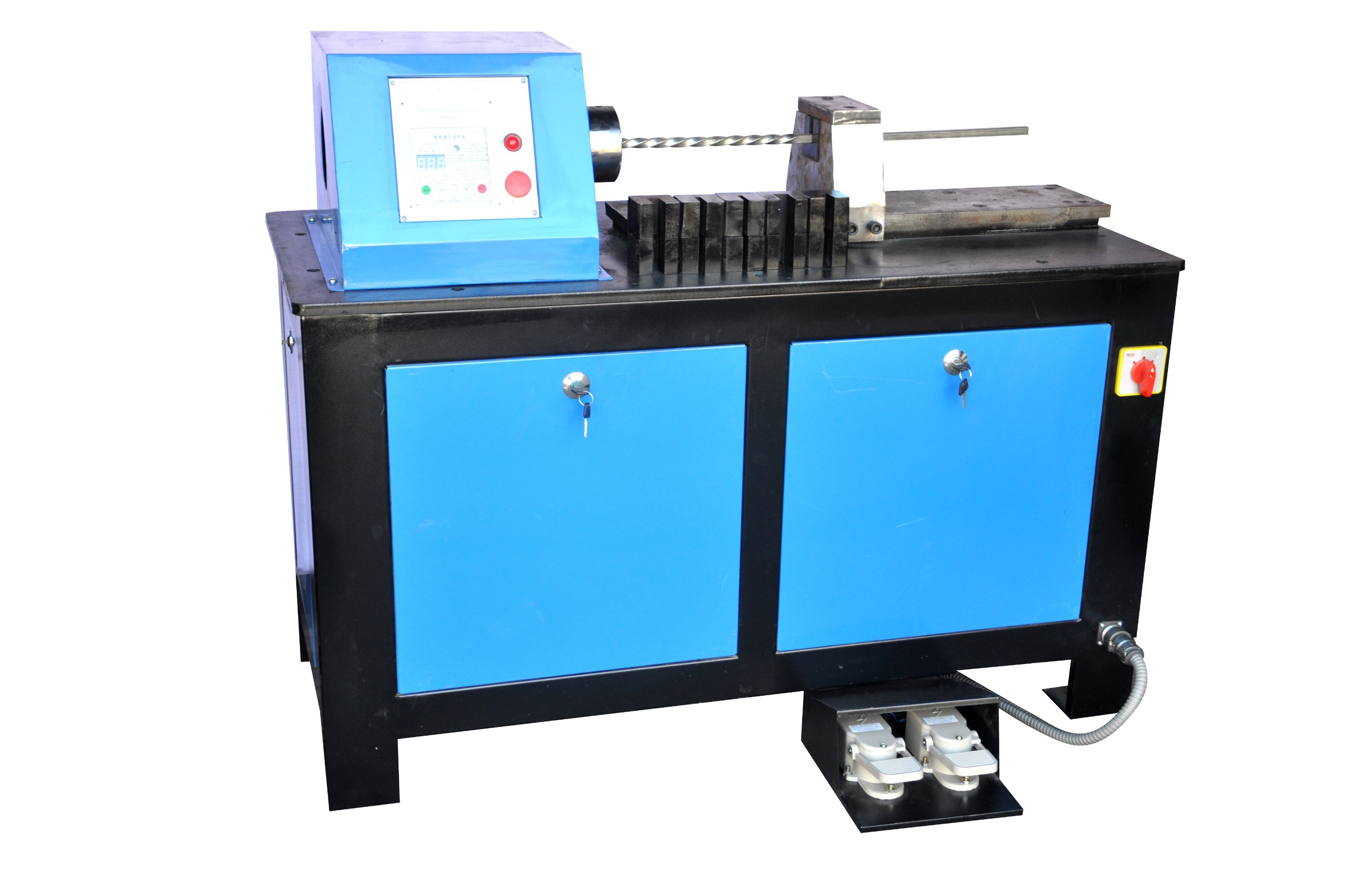

TNQ-25 Metal Twisting Machine

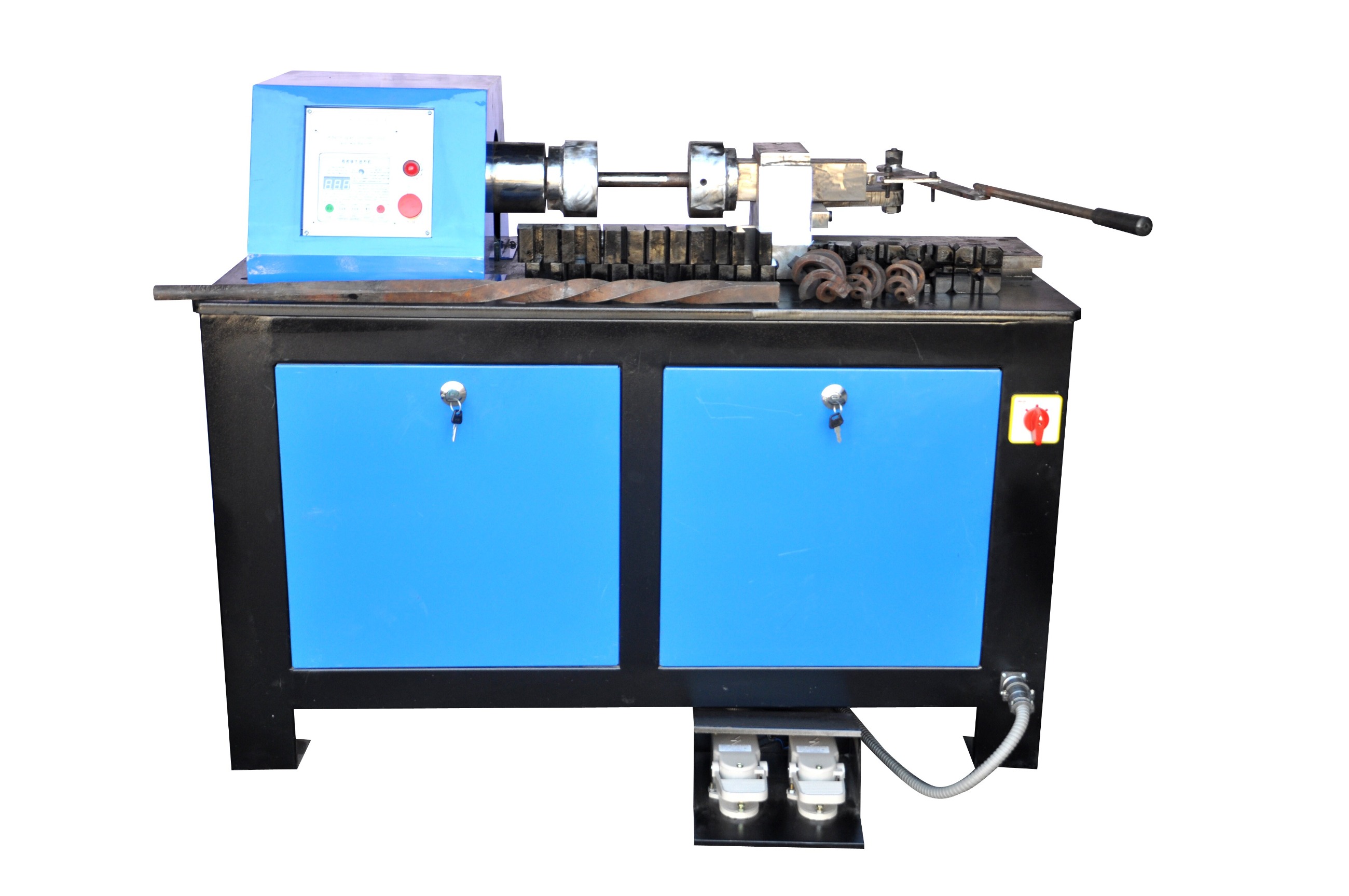

TNQ-20 and TNQ-25 twisting machines can twist the square steel, flat steel, etc. metallic materials into screw thread pattern, and meanwhile guarantee the high efficiency batch production and the standardization of twisted product. Such machine can also be equipped with the lantern auxiliary unit manufactured by our factory to twist lantern (birdcage), it is simple in installation, saving labor, and easy to operate; such machine can also be equipped with the fishtail auxiliary unit manufactured by our factory to coin fishtail pattern as well. The TNQ-25 is a new type reinforced equipment with processing capacity large than the TNQ-20. TNQ-20B and TNQ-25B are the new type equipment which are controlled by microcomputer and operate with high accuracy, large batch processing and automatic reckon by the piece, therefore are the ideal equipment indispensable to specialized batch production.
Items | TNQ-20Capacities | TNQ-25 Capacities | |
Max Sizes of the Stocks to be processed(mm) | Flat Steel | ≤40×8mm | ≤40×8mm |
Square Steel | ≤20×20mm | ≤25×25mm | |
Cycloidal pin-wheel Decelerator | Power | 1.5KW | 1.5KW |
Rotating Speed | 910(r/min) | 910(r/min) | |
Electricity | 380V 50HZ | ||
External Size (L×W×H)(mm) | 1400×570×970mm | 1600×600×1100mm | |
Packing Size(L×W×H)(mm) | 1510×650×1330mm | 1720×740×1350mm | |
Net/Gross Weight(kg) | 330/420kg | 380/460kg | |
