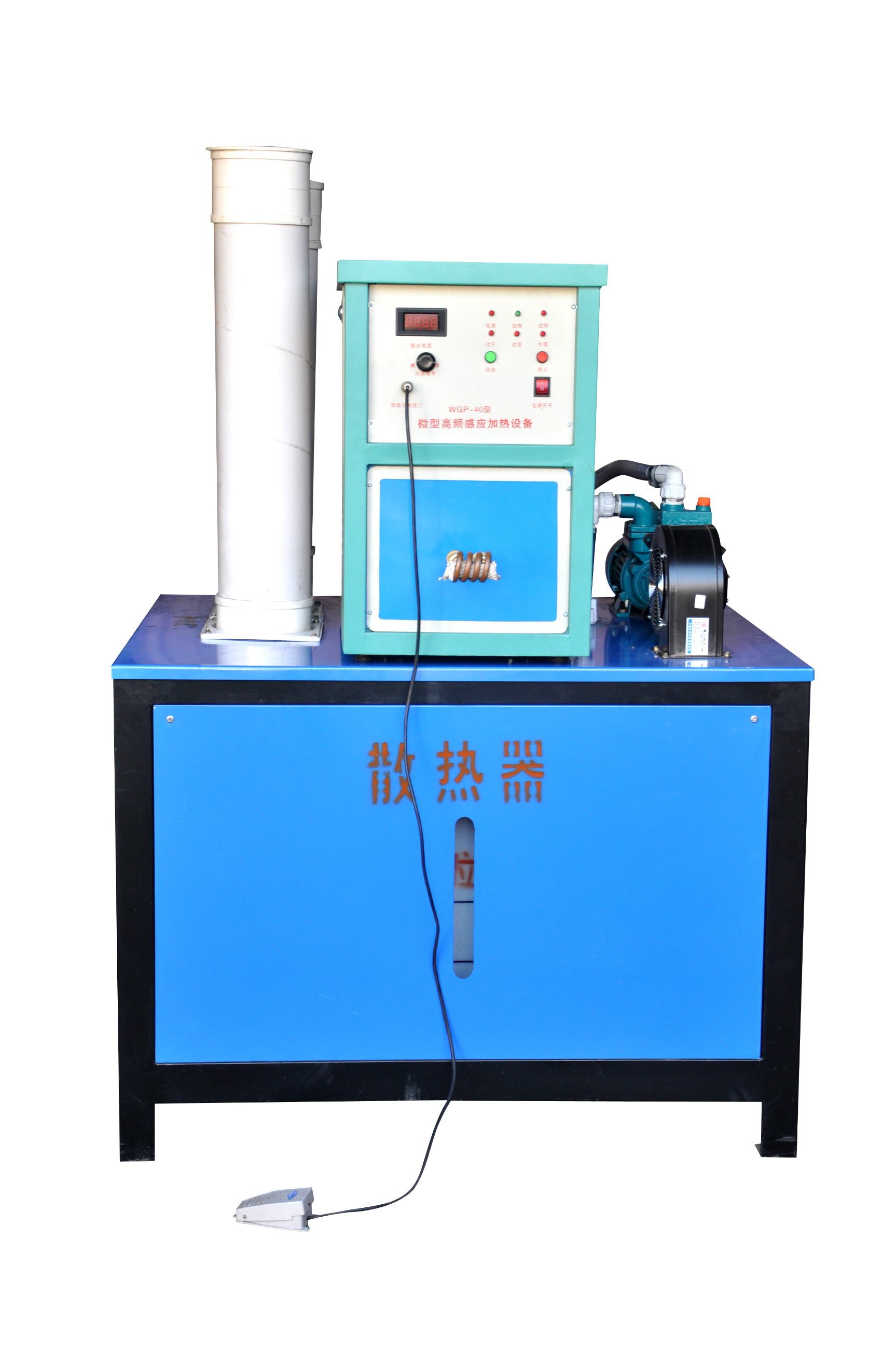

TYZY-GP-40 The Power of Iron Effcient Heater
TYZY-GP-40 The Power of Iron Effcient Heater uses high frequency induction heating, through the water cycle cooling, fan cooling, is high-tech products can capable of continuous heating. High frequency induction heating power supply using the principle of resonance, pulse frequency control technology and high capacity high speed switching element. The main circuit uses the IGBT device, so from the fundamental to replace the electronic shock as the characteristics of the older generation of high-frequency equipment, for example, heating flat iron, square steel, round steel etc, parts in the process of heating and quenching. Heating in the welding process of cutting tools and tools, as well as metal smelting, such as molten gold, silver and so on.
Technological Depiction
Material | Flat Iron | Square Steel | Round Steel | ||||
Specification range | ≤50×6mm | ≤16×16mm | ≤Ф20mm | ||||
Main Features | 1.Quickly heating: It takes 5 second to heat the 16*16mm Square steel. 2.Electricity consumption: It saves 60％ than old fashioned The power of iron effcient heater. 3.Comprehensive security protection: The machine is equipped with a sound and light alarm protection system, such as over voltage, over current, water shortage, etc. 4.This machine has the detachable induction coil, so it is suit to many kinds work pieces. 5.The machine uses high frequency induction heating, the work pieces surface has very little oxide, basically do not have to clean up. 6.TO improve the working environment, the use of the heating machine eliminates the harmful gas of carbon, oxygen and acetylence produced during combustion, to meet the requirement of environmental protection. | ||||||
Electric motor performance | Voltage | 380V 50HZ | The range of input Voltage | 320v-420v | |||
Input electric Current | 5-36A | Output surge electric current | 300A-1400A | ||||
Vibration frequency | 30-80KHZ | Temporary load rate | 100％ | ||||
Auxiliary machine parameters | Water pump Oil pump, Fan | Voltage 220V 50HZ | |||||
Packing Dimension | L×W×H=1200mm×640mm×1250mm | ||||||
