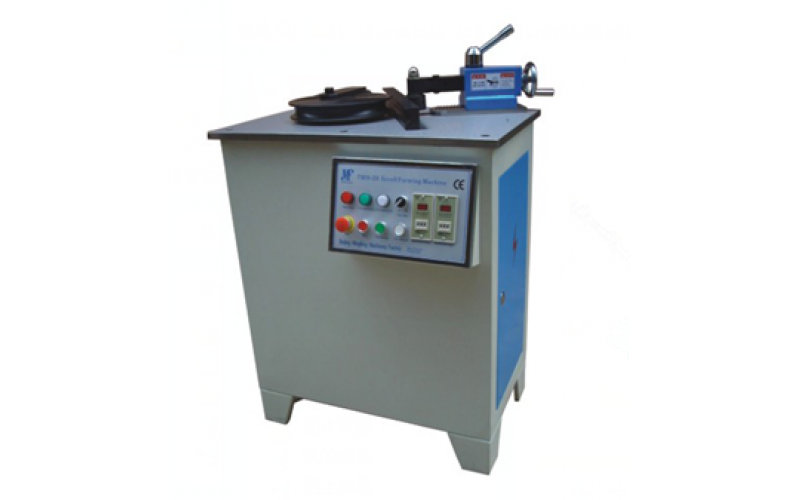

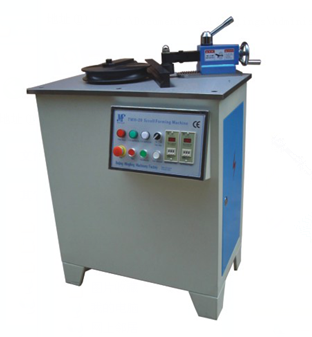

TWG-32 Round Tube Bending Machine
TWG-32 Round tube bending machine is one of major product of round tube processing equipments developed by our factory. It can bend round tube and square tube(thickness under 1 ~2.5mm) into arc shape (≤180) by both automatically and manually.
This equipment looks novel and distinctive, it’s necessary equipment in the fields of wrought iron steel furniture and architectural tube processing.
NO. | Items | TWG-32 | TWG-50 | |
1 | Max bend pipe capacity | Round Tube | Ф32 | Ф50 |
Square Tube | 20×20 | 30×30 | ||
Flat Steel | 30×8 | 50×10 | ||
2 | Thickness of tubes | 1.2~2.5 | 1.2~3.5 | |
3 | Arc Capacity | ≤180° | ≤180° | |
4 | Motor | Power | 0.4kw | 2.2kw |
Voltage | 380V 50HZ | 380V 50HZ | ||
5 | External Size | 860×600×1180mm | 1260×660×1310mm | |
6 | Packing Size | 920×680×1170mm | 1360×750×1310mm | |
7 | Net/Gross Weight | 347/390kg | 440/510kg | |
