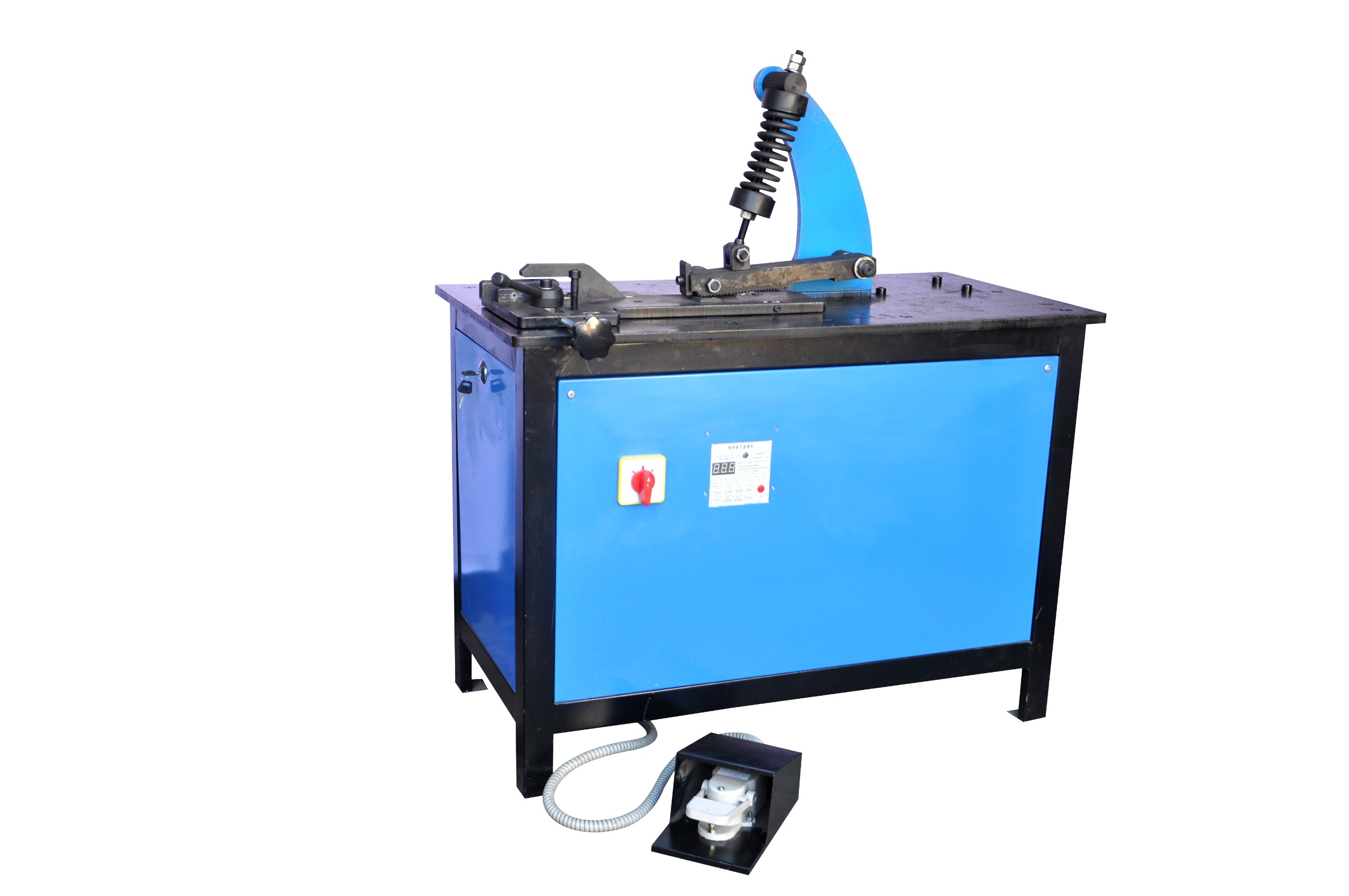

TYZY-CJ16 Electric Make Coil Machine
This machine is the type our company’s latest research and development specializing in make rolls. Can after is heated with different specifications of flat iron, square steel, round steel(fishtail)tightly into volumes, like a flower core shape formation. Greatly improve the elegant art style of iron. Is the indispensable mechanical equipment in the production of iron. This machine is equipped with three kinds of specifications, can be rolled into a ?30 、?40、?50 diameter size of the volume flower. Basically meet the production of iron art making in different specifications of flat iron, square steel, round steel, square tube, pipe(fishtail) end coil requirements. The machine is convenient and quick to replace the mold, easy to adjust, easy to operate. High quality coil, and consistency, and high production efficiency.
TYZY-CJ16 Electric Make coil Machine
Working Ability | Flat Iron(heating)≤8*30mm
|
Square Steel(tail heating)≤16*16mm
|
Round Steel(flat or tail)≤?16mm
|
Processing speed
| 180-200pcs per hour |
Electric motor performance | 380V1.1KW6P |
Main Features | 1.Simple operation, low failure rate, power saving 2.The mould structure is provided with a guide whee, made the feed resistance is greatly reduced, successful rolling. 3.This machine is labor saving, high production efficiency 4.High quality coil, and consistency. It can produce in batch. |
Packing Dimension
| L×W×H=1000mm*600mm*1300mm |
N.W.(kg) | 200 |
G.W.(kg) | 240 |
